Force &
Infrastructure
Protection
Knowledge is power. Knowing is the key.
Threats, known and unknown, surround us all. National defense and paramilitary teams constantly work to protect critical infrastructures, such as public buildings, waterways, and power plants.
Military forces simultaneously work to protect bases and deployed soldiers from hostile threats at the hands of enemy forces.
Trakka Systems’ family of products, both airborne and ground, can assist in all manner of national-security efforts.
Our critical vision technologies include the sophisticated TrakkaBeam searchlight, the scalable TrakkaCam with gyro-stabilized IR capabilities, and TrakkaMaps with geo-target tracking technology.
Trakka Systems can help you meet all of your C4ISR needs.
Airborne Surveillance Solutions

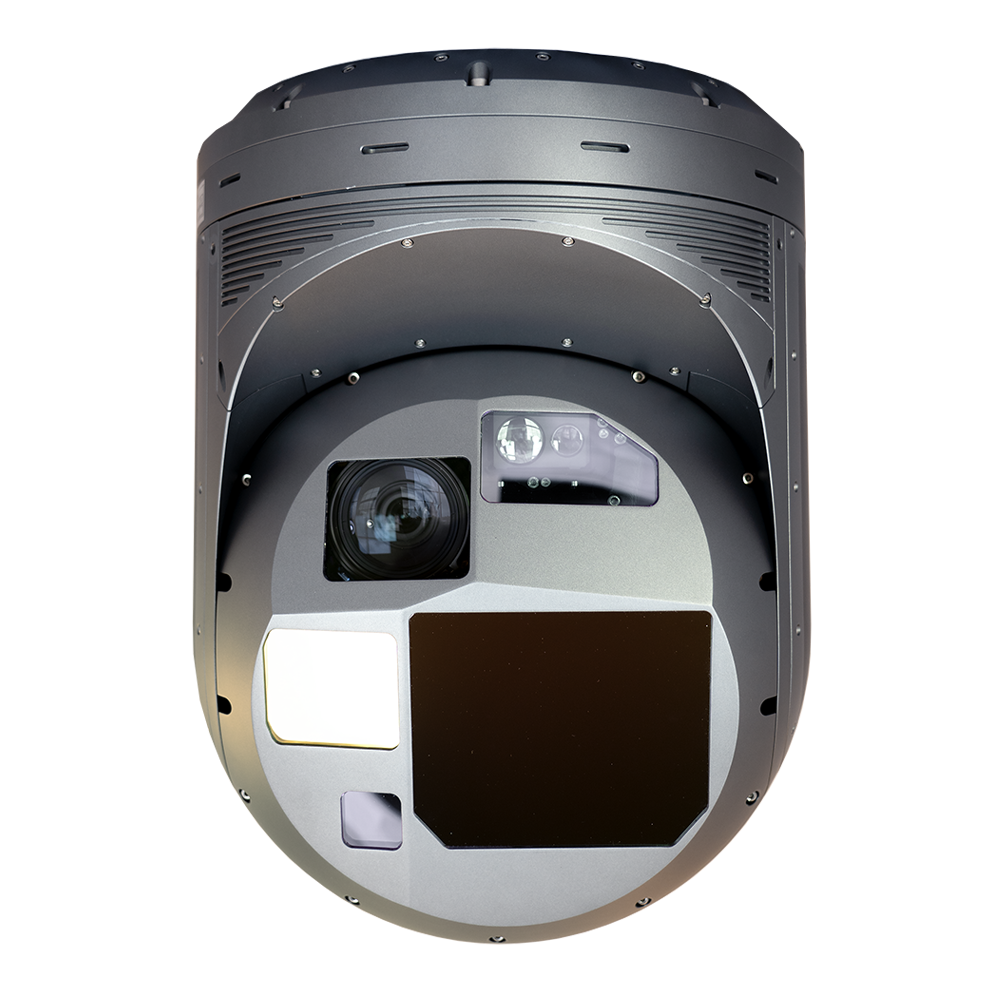

TrakkaCam
TC-375
The new TrakkaCam TC-375 is our highest-performance, longest-range surveillance system ever. The TC-375 is ideal for numerous long-range airborne missions and raises the bar for full HD (1080p), multispectral imaging in a single-LRU configuration. The system is suitable for fixed-wing, helicopter, and unmanned operations, including law enforcement, search and rescue, civil protection, military C4ISR, and force protection.
The TC-375 comes standard with embedded metadata, Moving Target Detection (MTI), and a fully integrated IMU/INS for Geo-Location, Geo Hold, and simplified Moving Maps integration, enabling operators and commanders to share mission-critical information in real-time. The payloads are supported by 4-axis active gyro-stabilization and integrated 6-axis passive vibration isolation to compensate for aircraft maneuvering and eliminate external vibrations producing clear, stable High-Definition images. The system includes an all-digital architecture and real-time vision-aiding features like picture-in-picture, split-screen, and image blending, allowing operators to extract scene details that would otherwise go unnoticed. The TC-375 is available with the TrakkaMaps TM-100 map and video management system. It easily integrates with the TrakkaBeam TLX, TLXc, or 800 searchlights for a fully integrated total surveillance solution package.

TrakkaCam
TC-300
Trakka’s TC-300 is rapidly becoming the gold standard of stabilized, compact, long-range, multispectral imaging systems. The TC-300 provides airborne crews with crystal clear High-Definition (HD) imagery at farther standoff ranges and can read a license plate beyond 1km. The lightweight and compact size make it ideal for numerous installation types, including fixed-wing, helicopter, and unmanned platforms. The TC-300 includes a long-range HD-EO camera, EO spotter scope, and HD-MWIR infrared camera. The system is ITAR free and widely exportable.
The TC-300 comes standard with embedded metadata, Moving Target Detection (MTI), and a fully integrated IMU/INS for Geo-Location, Geo Hold, and simplified Moving Maps integration, enabling operators and commanders to share mission-critical information in real-time. The payloads are supported by 4-axis active gyro-stabilization and integrated 6-axis passive vibration isolation to compensate for aircraft maneuvering and eliminate external vibrations producing clear stable High-Definition images. The system includes an all-digital architecture and real-time vision-aiding features like picture-in-picture, split-screen, and image blending allowing operators to extract scene details that would otherwise go unnoticed. The TC-300 is available with the TrakkaMaps TM-100 map and video management system. It easily integrates with the TrakkaBeam TLX, TLXc, or 800 searchlights for a fully integrated total surveillance solution package.
Features

Full suite of seven payloads: I.R., HDTV, LRF, L.P., LI, A/T, IMU/GPS










Continuous optical zoom on all imaging channels




Non-ITAR Product




RTCA DO-160 Tested for Environmental, Electromagnetic and Mechanical Compliance


TrakkaCam
SWE-400 QUAD
Trakka’s SWE-400 QUAD multi-purpose, stabilized, multi-spectral imaging system gives utility and environmental operators the capability to measure temperatures in real-time, detect Corona discharges, and capture high-definition video and mega-pixel digital still photos from an airborne platform.
The SWE-400 QUAD increases inspection speeds and saves utility companies costs by helping to reduce reactive maintenance and unscheduled downtime. The system is also an effective tool for oil spill detection, as the long-wave infrared camera detects thick oil sheens, and the specialized UV camera detects thinner sheens. The SWE-400 QUAD is also invaluable for wildfire fighting missions, as the radiometric camera penetrates through smoke to see hot spots and provides temperature measurements in real-time. The UV camera determines the direction and behavior of the fire and provides the geographical coordinates to direct firefighters and water bombers to critical locations. The fully digital 4-axis active gyro stabilization gimbal compensates for aircraft maneuvering and eliminates external vibrations. Coupled with the TM-100’s measuring tools, the system informs the command center of the fire’s perimeter, distance to buildings and roads, and its progress.
Features






Radiometric output provides full thermal resolution images


Realtime temperature measurements


Detailed temperature analysis and reporting software


Solar Blind UV channel for Corona detection






High resolution digital stills photo camera with continuous zoom lens.


All stored photos are geo – referenced with location information.


MISB compliant video on Ethernet streams




TrakkaBeam
TLXc
With all the advantages of the TrakkaBeam TLX searchlight, the TLXc model combines the best searchlight and airborne camera technology with its dual-sensor thermal imager/high-definition TV camera payloads. This industry-leading capability enhances mission capability and versatility. The TLXc also incorporates an inertial line of sight stability, providing stable imagery for enhanced situational awareness.
Features







Increased Light intensity across the entire beam




Embedded Day/Night situational awareness cameras




Inertially stabilized gimbal










Enhanced internal multi spectral filter options




TrakkaBeam
TLX
Building on the proven workhorse of the innovative TrakkaBeam A800 model, the TLX offers even more performance, features, and functionality in the same sleek design. The TLX provides increased light intensity across the searchlight’s beam while requiring an even lower power draw. The aerodynamic TLX model leads the industry in total beam brightness and clarity, with uniform edge-to-edge light spread across the beam’s diameter.
Features







Increased Light intensity across the entire beam










Enhanced internal multispectral filter options




Reduced power consumption










Integrated slaving for TrakkaCam and other camera systems




TrakkaBeam
A800
The A800 is a high-intensity searchlight designed for airborne platforms. The multi-mission TrakkaBeam A800 searchlight provides powerful tactical illumination that includes an integrated, easy-to-use multispectral filter wheel accessible from the cockpit that aids visual acuity. The A800 slews at 0-60° per second elevation or azimuth, and it can be easily installed on new or existing searchlight mounts. The rugged A800 is ideal for a variety of missions.
Features




Superior beam profile










Internal multispectral filter options





Tested and certified for performance and reliability




Aerodynamic design results in a low parasitic drag










Integrated slaving for TrakkaCam and other camera systems


TrakkaBeam
TL-360
Experience the future of searchlight technology with the TL-360.
The TrakkaBeam® TL-360 LED/LEP hybrid searchlight is a game-changer, providing operators with 360° illumination while using just 1/3 of the power compared to similar systems. Ideal for platforms that value both capabilities and lightweight design. Featuring a lightweight and compact single LRU configuration, the TL-360 provides simplified installation and integration, eliminating the need for power conditioning or external interface units. Its inertial stabilization enhances performance during aircraft maneuvers, reducing external vibrations.
Versatility is key with the TL-360, suitable for fixed-wing, rotary-wing, light aircraft, and manned or unmanned platforms. With solid-state components, it offers robustness and is highly expandable and upgradeable. Experience the TL-360 and witness the future of illumination technology.




TrakkaMaps
TM-100
TrakkaMaps TM-100 is a full-featured mission mapping and video management system that can run on various computer platforms, including notebooks and ruggedized laptops. The affordable and flexible architecture is easily customizable with open-source databases and user proprietary secure databases. Designed to integrate with TrakkaCam cameras and TrakkaBeam searchlights, the TM-100 can slew the camera and searchlight’s line of sight to any point on the map with the touch of the screen, mouse click, address, intersection, city, points of interest, or coordinate entries. The TM-100’s intuitive touchscreen controls offer 3D, street, satellite, and custom map views, available with augmented reality overlays on live video imagery.
Features




Operator selectable viewing modes




3D map views




Augmented Reality (A.R.) overlays on live video imagery




Plug and play with other Trakka products; low-cost full-featured mapping






Innovative post-mission image and video processing
GROUND SURVEILLANCE SOLUTIONS



TrakkaCam
TC-300G
Trakka’s TC-300G is our premier compact, gyro-stabilized, long-range, multispectral imaging system for land-based missions. The TC-300G provides ground units with clear High-Definition imagery at farther standoff ranges, allowing detection of humans up to 18km and vehicles up to 26km. The system is ideal for missions like border security, civil protection, military C4ISR, and force protection. The lightweight and compact size make it the perfect choice for mobile, fixed, and unmanned platforms and installations. The TC-300G includes a long-range HD-EO camera, EO spotter scope, and HD-MWIR infrared imager. The system is ITAR free and widely exportable.
The TC-300G comes standard with embedded metadata, Moving Target Detection (MTI), and a fully integrated IMU/INS for Geo-Location, Geo Hold, and simplified Moving Maps integration, enabling operators and commanders to share mission-critical information in real-time. The payloads are supported by 4-axis active gyro-stabilization and integrated 6-axis passive vibration isolation to compensate for vehicle maneuvering and eliminate external vibrations producing clear stable High-Definition images. The system includes an all-digital architecture and real-time vision-aiding features like picture-in-picture, split-screen, and image blending allowing operators to extract scene details that would otherwise go unnoticed. The TC-300G is available with TrakkaMaps TM-100 map and video management system and easily integrates with the TrakkaBeam TLX, TLXc, or 800 searchlights for a fully integrated total surveillance solution package.
Features




Full suite of seven payloads: I.R., HDTV, LRF, L.P., LI, A/T, IMU/GPS










Continuous optical zoom on all imaging channels




Non-ITAR Product




RTCA DO-160 Tested for Environmental, Electromagnetic and Mechanical Compliance




TrakkaBeam
TLXc
With all the advantages of the TrakkaBeam TLX searchlight, the TLXc model combines the best searchlight and airborne camera technology with its dual-sensor thermal imager/high-definition TV camera payloads. This industry-leading capability enhances mission capability and versatility. The TLXc also incorporates an inertial line of sight stability, providing stable imagery for enhanced situational awareness.
Features







Increased Light intensity across the entire beam




Embedded Day/Night situational awareness cameras




Inertially stabilized gimbal










Enhanced internal multi spectral filter options




TrakkaBeam
TLX
Building on the proven workhorse of the innovative TrakkaBeam A800 model, the TLX offers even more performance, features, and functionality in the same sleek design. The TLX provides increased light intensity across the searchlight’s beam while requiring an even lower power draw. The aerodynamic TLX model leads the industry in total beam brightness and clarity, with uniform edge-to-edge light spread across the beam’s diameter.
Features







Increased Light intensity across the entire beam










Enhanced internal multispectral filter options




Reduced power consumption










Integrated slaving for TrakkaCam and other camera systems




TrakkaBeam
A800
The A800 is a high-intensity searchlight designed for airborne platforms. The multi-mission TrakkaBeam A800 searchlight provides powerful tactical illumination that includes an integrated, easy-to-use multispectral filter wheel accessible from the cockpit that aids visual acuity. The A800 slews at 0-60° per second elevation or azimuth, and it can be easily installed on new or existing searchlight mounts. The rugged A800 is ideal for a variety of missions.
Features




Superior beam profile










Internal multispectral filter options





Tested and certified for performance and reliability




Aerodynamic design results in a low parasitic drag










Integrated slaving for TrakkaCam and other camera systems


TrakkaBeam
M800
The M800 non-gimbaled remotely controlled searchlight system with an internally integrated multispectral filter wheel. The M800 searchlight can be utilized as a fully self-contained unit on ground-based equipment such as tripods, vehicles, or marine vessels. Alternatively, the M800 can integrate with other sensors or pan-and-tilt mechanisms for applications involving surveillance towers, checkpoints, and forward observation points.
Features


Fixed-site and mobile vehicle applications





Available in a ruggedized platform for harsh environments


Internal filter wheel with up to 6 filters


Portable battery pack, storage & carrying case




TrakkaMaps
TM-100
TrakkaMaps TM-100 is a full-featured mission mapping and video management system that can run on various computer platforms, including notebooks and ruggedized laptops. The affordable and flexible architecture is easily customizable with open-source databases and user proprietary secure databases. Designed to integrate with TrakkaCam cameras and TrakkaBeam searchlights, the TM-100 can slew the camera and searchlight’s line of sight to any point on the map with the touch of the screen, mouse click, address, intersection, city, points of interest, or coordinate entries. The TM-100’s intuitive touchscreen controls offer 3D, street, satellite, and custom map views, available with augmented reality overlays on live video imagery.
Features




Operator selectable viewing modes




3D map views




Augmented Reality (A.R.) overlays on live video imagery




Plug and play with other Trakka products; low-cost full-featured mapping






Innovative post-mission image and video processing



TrakkaCam
TC-300G
Trakka’s TC-300G is our premier compact, gyro-stabilized, long-range, multispectral imaging system for land-based missions. The TC-300G provides ground units with clear High-Definition imagery at farther standoff ranges, allowing detection of humans up to 18km and vehicles up to 26km. The system is ideal for missions like border security, civil protection, military C4ISR, and force protection. The lightweight and compact size make it the perfect choice for mobile, fixed, and unmanned platforms and installations. The TC-300G includes a long-range HD-EO camera, EO spotter scope, and HD-MWIR infrared imager. The system is ITAR free and widely exportable.
The TC-300G comes standard with embedded metadata, Moving Target Detection (MTI), and a fully integrated IMU/INS for Geo-Location, Geo Hold, and simplified Moving Maps integration, enabling operators and commanders to share mission-critical information in real-time. The payloads are supported by 4-axis active gyro-stabilization and integrated 6-axis passive vibration isolation to compensate for vehicle maneuvering and eliminate external vibrations producing clear stable High-Definition images. The system includes an all-digital architecture and real-time vision-aiding features like picture-in-picture, split-screen, and image blending allowing operators to extract scene details that would otherwise go unnoticed. The TC-300G is available with TrakkaMaps TM-100 map and video management system and easily integrates with the TrakkaBeam TLX, TLXc, or 800 searchlights for a fully integrated total surveillance solution package.
Features




Full suite of seven payloads: I.R., HDTV, LRF, L.P., LI, A/T, IMU/GPS










Continuous optical zoom on all imaging channels




Non-ITAR Product




RTCA DO-160 Tested for Environmental, Electromagnetic and Mechanical Compliance




TrakkaBeam
TLXc
With all the advantages of the TrakkaBeam TLX searchlight, the TLXc model combines the best searchlight and airborne camera technology with its dual-sensor thermal imager/high-definition TV camera payloads. This industry-leading capability enhances mission capability and versatility. The TLXc also incorporates an inertial line of sight stability, providing stable imagery for enhanced situational awareness.
Features







Increased Light intensity across the entire beam




Embedded Day/Night situational awareness cameras




Inertially stabilized gimbal










Enhanced internal multi spectral filter options




TrakkaBeam
TLX
Building on the proven workhorse of the innovative TrakkaBeam A800 model, the TLX offers even more performance, features, and functionality in the same sleek design. The TLX provides increased light intensity across the searchlight’s beam while requiring an even lower power draw. The aerodynamic TLX model leads the industry in total beam brightness and clarity, with uniform edge-to-edge light spread across the beam’s diameter.
Features







Increased Light intensity across the entire beam










Enhanced internal multispectral filter options




Reduced power consumption










Integrated slaving for TrakkaCam and other camera systems




TrakkaBeam
A800
The A800 is a high-intensity searchlight designed for airborne platforms. The multi-mission TrakkaBeam A800 searchlight provides powerful tactical illumination that includes an integrated, easy-to-use multispectral filter wheel accessible from the cockpit that aids visual acuity. The A800 slews at 0-60° per second elevation or azimuth, and it can be easily installed on new or existing searchlight mounts. The rugged A800 is ideal for a variety of missions.
Features




Superior beam profile










Internal multispectral filter options





Tested and certified for performance and reliability




Aerodynamic design results in a low parasitic drag










Integrated slaving for TrakkaCam and other camera systems




TrakkaMaps
TM-100
TrakkaMaps TM-100 is a full-featured mission mapping and video management system that can run on various computer platforms, including notebooks and ruggedized laptops. The affordable and flexible architecture is easily customizable with open-source databases and user proprietary secure databases. Designed to integrate with TrakkaCam cameras and TrakkaBeam searchlights, the TM-100 can slew the camera and searchlight’s line of sight to any point on the map with the touch of the screen, mouse click, address, intersection, city, points of interest, or coordinate entries. The TM-100’s intuitive touchscreen controls offer 3D, street, satellite, and custom map views, available with augmented reality overlays on live video imagery.
Features




Operator selectable viewing modes




3D map views




Augmented Reality (A.R.) overlays on live video imagery




Plug and play with other Trakka products; low-cost full-featured mapping






Innovative post-mission image and video processing
INSTALLATIONS
Trakka products are installed on countless platforms globally, operating in the most demanding environments, and built to meet or exceed the most stringent mission requirements.
